Wireless e-Loop wiring to current BMGi products

IMPORTANT:
  • Adding a wireless e-loop requires auto close to be set. Check your control board settings and adjust auto close as required.
  • You must add safety beams to your system when adding the e-loop to prevent the gate auto closing onto a vehicle.
  • If purchasing the e-loop for any other gate model you must refer to your user manual for instructions on wiring to your system and for any settings that require adjustments.

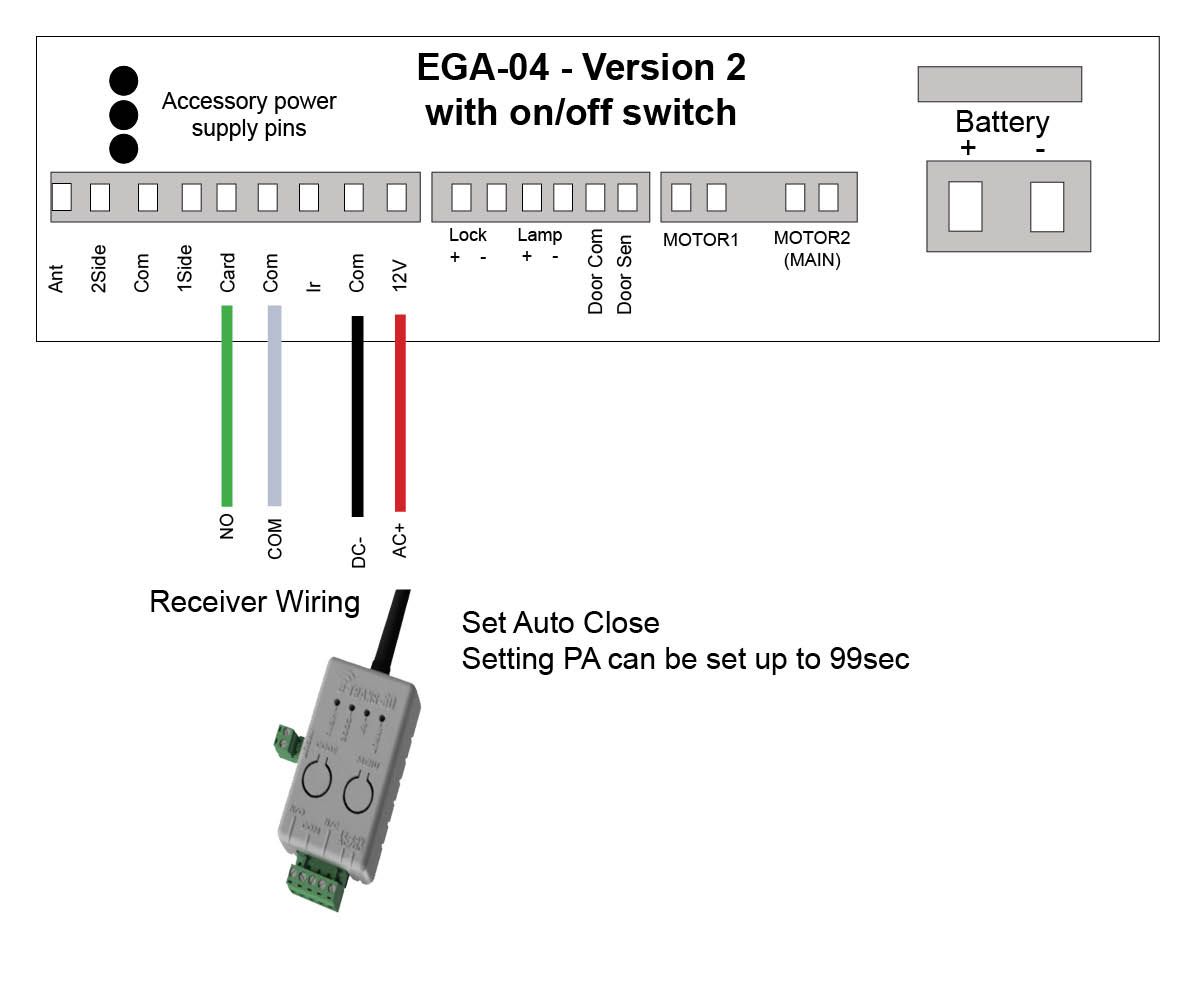

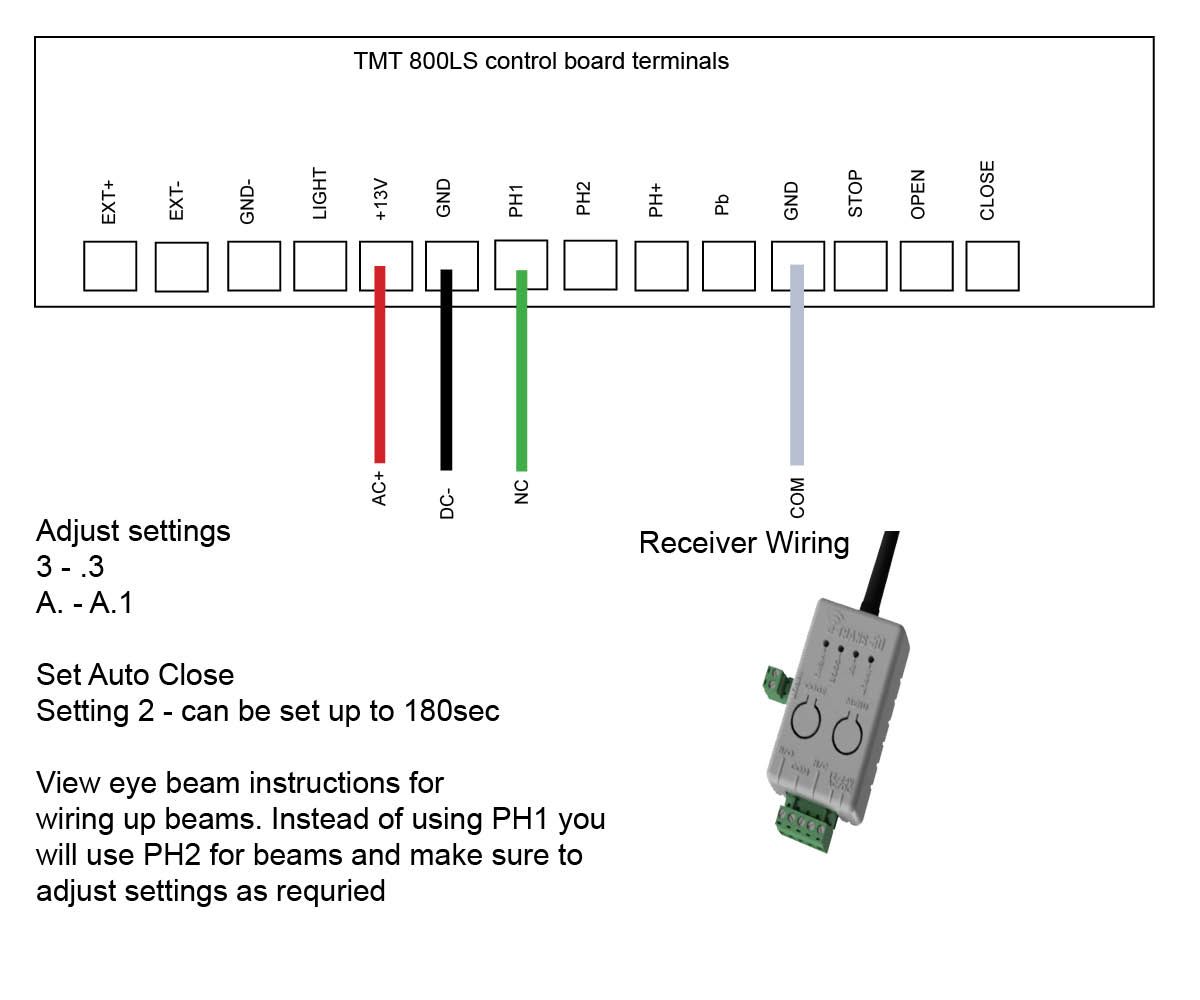

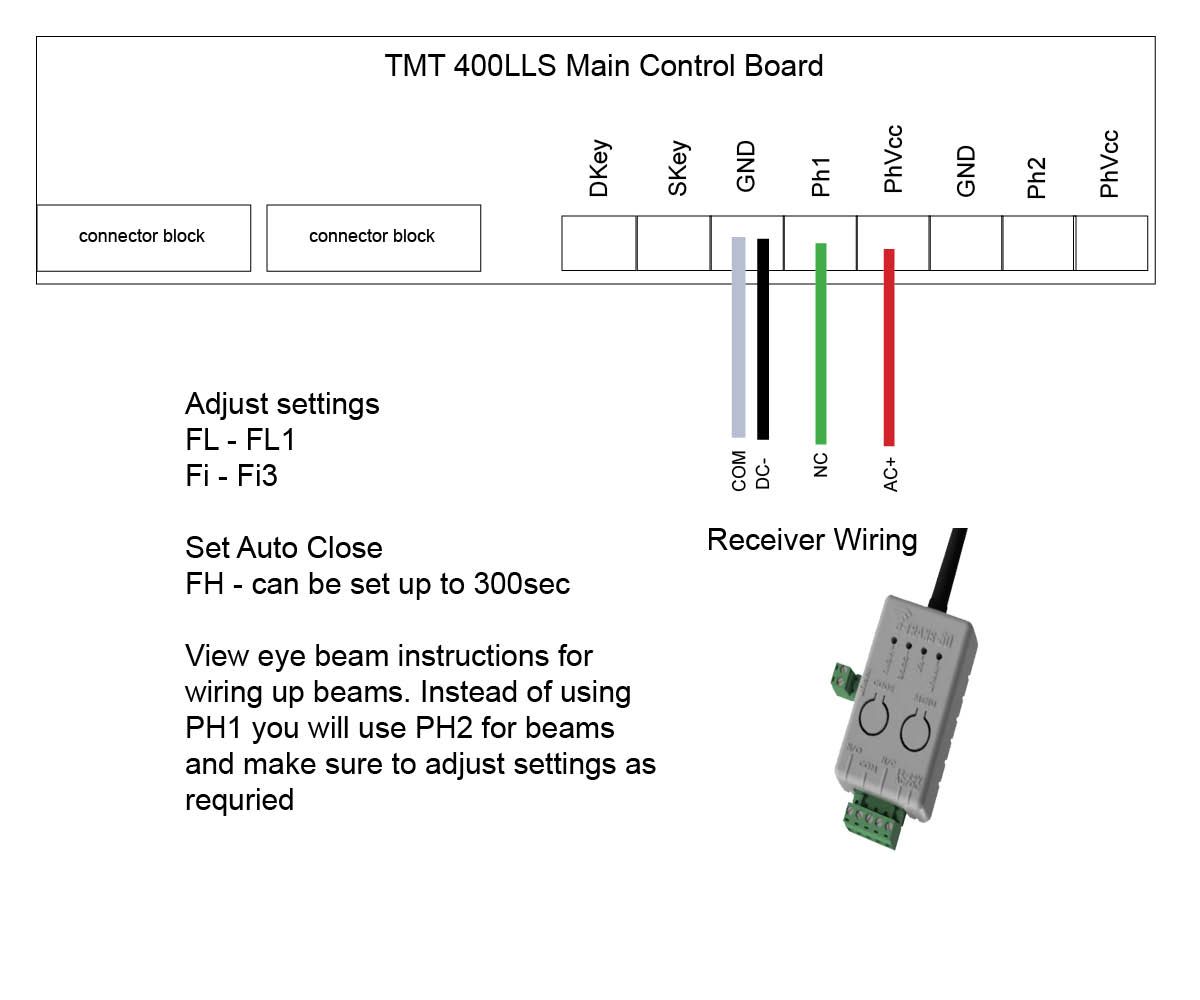

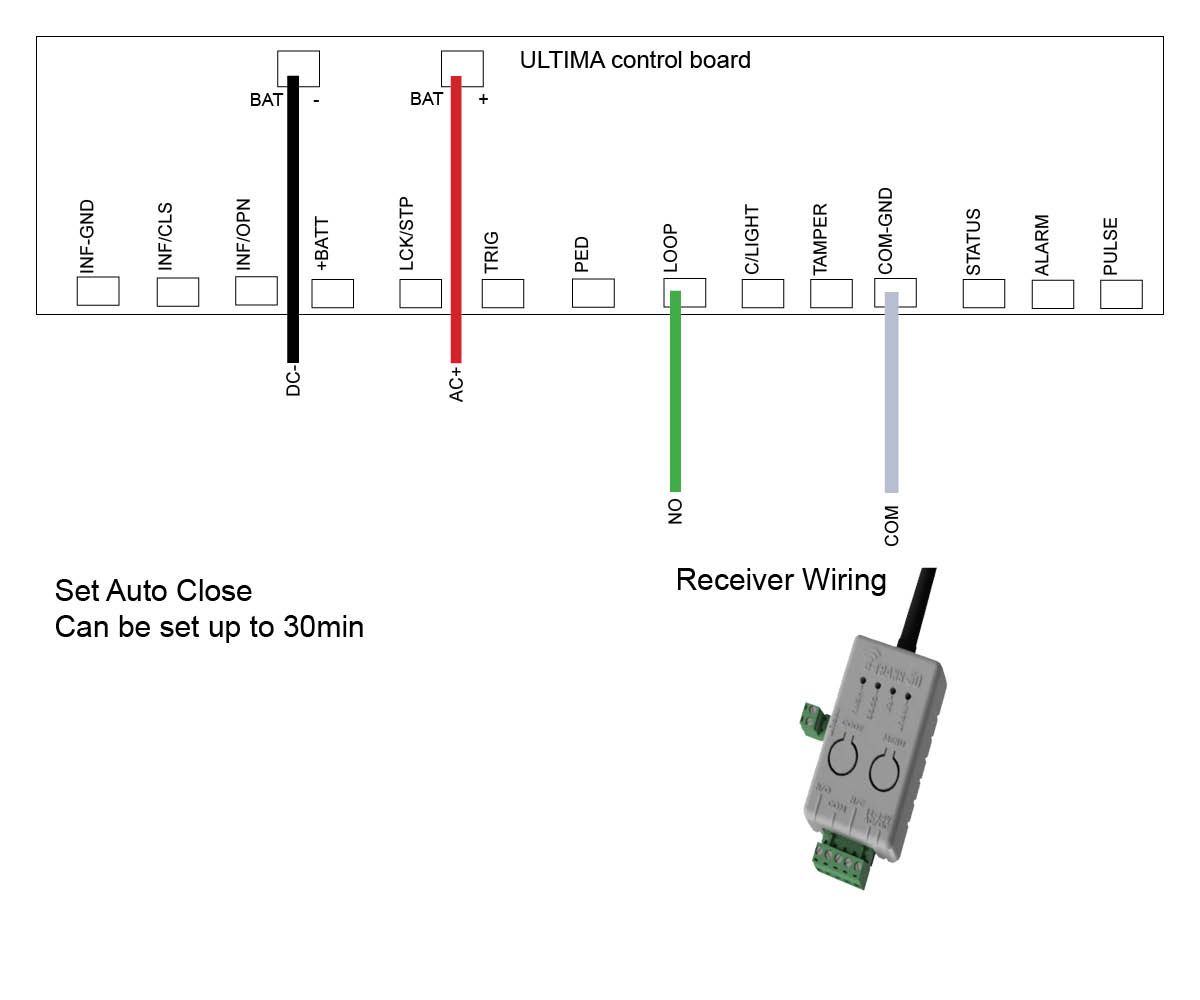

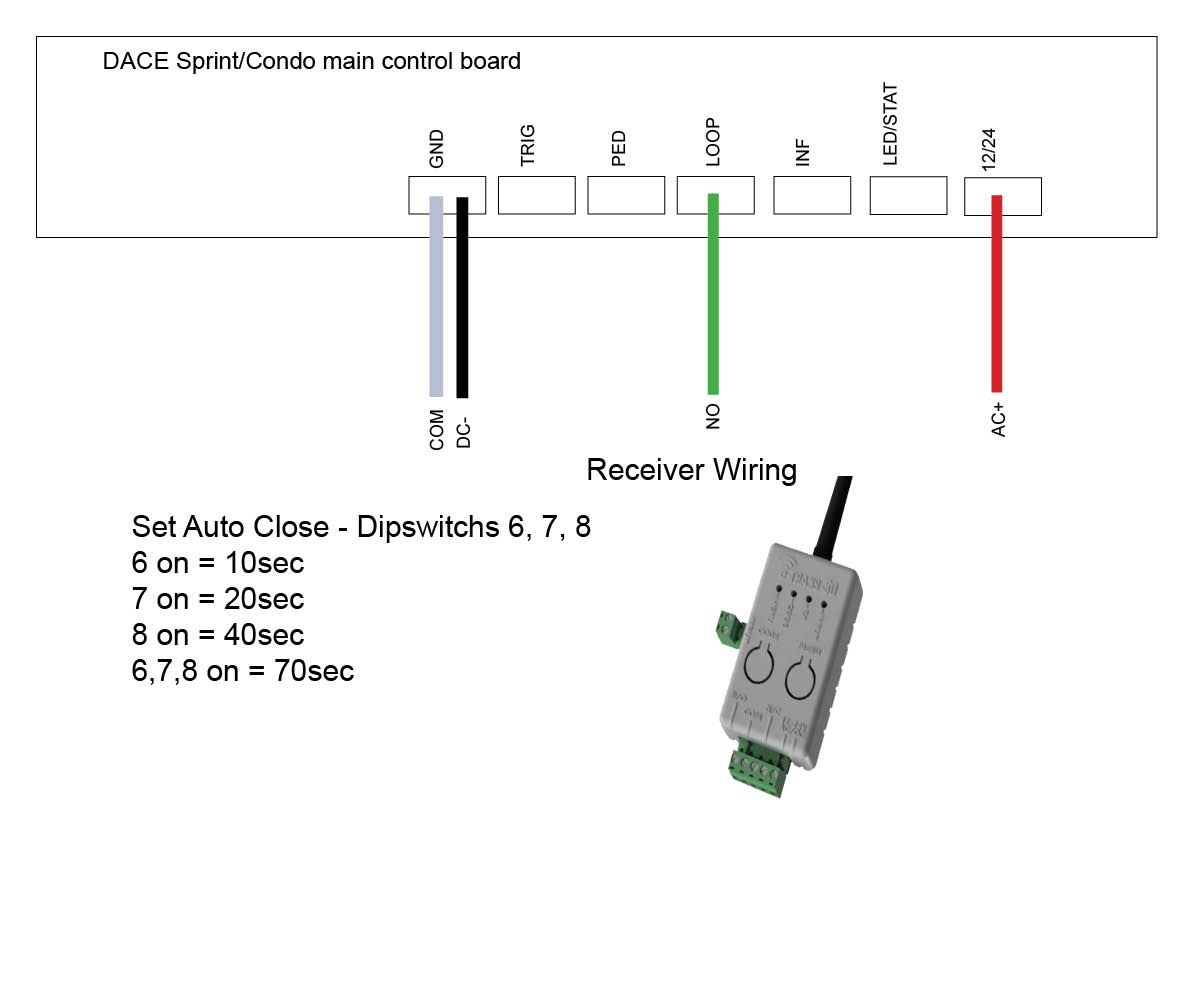

Click on the BMG motor you have below to see the wiring diagram:
